Smooth Running Anti Static Flat Belt SMT PCB Cooling Conveyor With Cooling Fans And Towerlight

In the high-stakes world of Surface Mount Technology (SMT), the cooling phase is not merely a transition; it is a critical metallurgical process that defines the long-term reliability of your electronic assemblies. Our SMT Cooling Conveyor with Fans is engineered to bridge the gap between high-temperature reflow soldering and downstream inspection or handling, providing a controlled, uniform thermal environment that prevents thermal shock and ensures optimal solder joint microstructure. Designed for global manufacturing standards, this equipment seamlessly integrates into automated production lines to enhance throughput, reduce defects, and safeguard the integrity of your printed circuit boards (PCBs).

This specialized cooling conveyor is positioned immediately after the reflow oven to actively manage the thermal profile of freshly soldered PCBA. Unlike passive air cooling, our system utilizes high-efficiency axial fans to deliver forced convection cooling, ensuring a consistent and controlled temperature drop. The conveyor features a robust, vibration-free transport mechanism with ESD-safe belts and precision-adjustable guide rails, accommodating a wide range of PCB sizes while maintaining perfect alignment. Equipped with standard SMEMA communication interfaces, it synchronizes flawlessly with upstream and downstream equipment, creating a continuous, automated workflow that minimizes manual intervention and maximizes production efficiency.

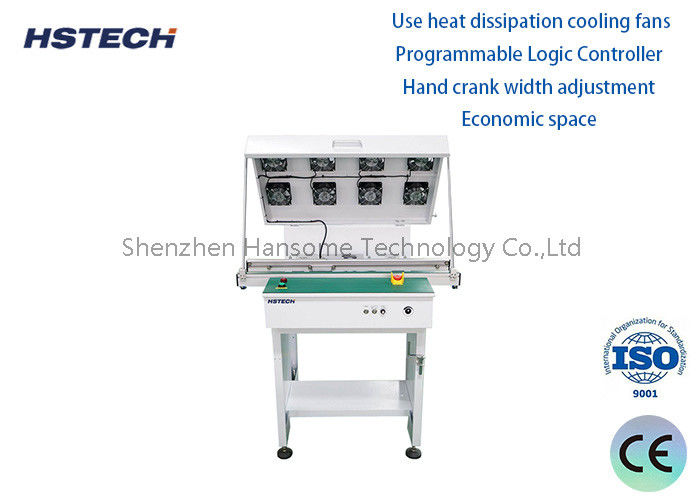

• Use heat dissipation cooling fans.
• Programmable Logic Controller.
• Hand crank width adjustment
• Economic space.
• Use stainless steel screw,smooth and parallel width adjustment
• Left to right travel,or right to left, front rail fixed
• ESD working table.
• Height adjustable and stable feet cup location.
• Speed control.
• SMEMA compatible.

This cooling conveyor is an essential component in modern SMT assembly lines, particularly suited for:

• High-Density PCB Assembly: Ideal for boards with large thermal mass components such as BGAs, QFNs, and power modules that retain significant heat after reflow.
• Lead-Free Soldering Processes: Critical for managing the steeper cooling curves required by lead-free alloys to achieve optimal joint reliability.
• Automated Optical Inspection (AOI) & ICT Testing: Ensures PCBs are at a safe, stable temperature before entering precision inspection stations, preventing thermal interference with optical sensors and test probes.
• High-Volume Manufacturing: Designed for continuous 24/7 operation in high-throughput environments where consistent cooling performance is vital to maintaining line balance and cycle times.
• Multi-Layer & Thick PCBs: Provides enhanced cooling capacity for complex boards that require more aggressive thermal management to prevent internal stress and delamination.

We understand that in electronics manufacturing, consistency is the cornerstone of quality. Our cooling conveyor is not just a transport device; it is a precision thermal management solution backed by rigorous engineering and global compliance standards. Every unit undergoes extensive testing to ensure reliable performance under continuous operation, with components selected for durability and minimal maintenance. We offer comprehensive customization options to match your specific line layout, PCB dimensions, and cooling requirements, ensuring a perfect fit for your production environment. With full SMEMA compatibility and intuitive controls, integration is seamless, and our dedicated technical support team is ready to assist you at every stage, from installation to ongoing optimization. Choosing our cooling conveyor means investing in a system that protects your product quality, enhances your production efficiency, and supports your commitment to manufacturing excellence.
