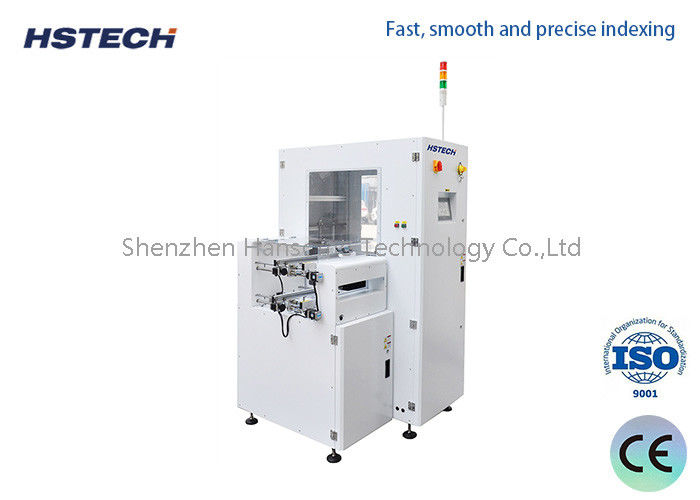

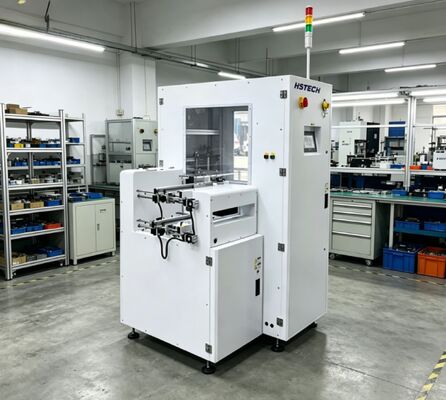

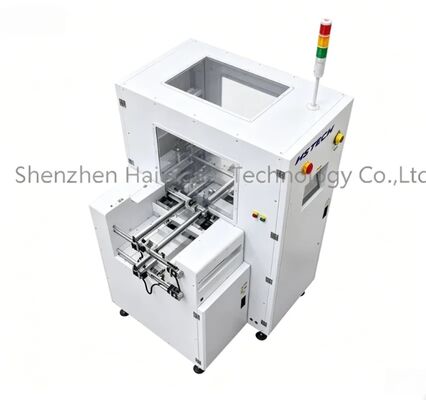

Touch Screen FIFO LIFO Vertical Buffer Automatic PCB Buffer With SMEMA Compatible

Наименование марки:	HSTECH
Номер модели:	HS-HC250
МОК:	1 шт.
цена:	negotiable
Условия оплаты:	Т/Т
Способность к поставкам:	100 шт/месяц

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Китай

Сертификация:

CE,ISO

Контроль:

Сенсорный экран

Сигнал:

СМЕМА

Давление воздуха:

4-6бар

Название продукта:

ПКБ-буфер

Источник питания:

220В,50/60Гц,±10%

Гарантия:

1 год

Упаковывая детали:

Деревянный

Поставка способности:

100 шт/месяц

Выделить:

Touch screen PCB buffer

FIFO LIFO vertical buffer

SMEMA compatible PCB buffer

Описание продукта

Touch Screen FIFO LIFO Vertical Buffer Automatic PCB Buffer With SMEMA Compatible

This PCB Buffer serves as a buffer device between SPI, AOI, and other inspection equipment and main mounting equipment. It temporarily stores and buffers PCB boards to achieve seamless connection of production line processes, helping SMT production lines achieve automation and improve production efficiency.

Key Features

User-friendly soft touch LED membrane control panel
FIFO, LIFO, Loader, Unloader, Reject mode selection
Fast, smooth, and precise indexing
Pneumatic clamps for magazine alignment
Regulated pneumatic pusher pressure
Integrated threshold system
Additional magazines buffering capacity available upon request
SMEMA compatible

Technical Specifications

Model	HS-GH350
Transport height	910±20mm
Transportation direction	L~R, or R~L
Board cycle time	Approx 20 seconds
Magazine change over time	Approx 30 seconds
Track fixed side	Front side
Operation side	Front side
PCB thickness	Min 0.6mm
Pitch selection	1-4 (10mm pitch)
Power supply	220V, 50/60Hz, ±10%
Power	0.05kW
Air pressure	4-6Bar
Air consumption	Max 10L/min
Number of magazines	Upper: 1 magazine, Bottom side: 1 magazine
Signal	SMEMA

Available Models

Model	HS-HC250S	HS-HC330M	HS-HC390L	HS-HC460XL
Efficient PCB length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
Magazine size	355320563mm	460400563mm	535460570mm	535530570mm
Machine dimension	125012001600mm	146013601600mm	161014801600mm	161016201600mm
Weight	170kg	230kg	300kg	330kg

Application Areas

Buffer device for connecting equipment: Import PCB boards from upstream inspection equipment to downstream placement equipment, achieving seamless connection and process balance
PCB board temporary storage function: Temporarily store qualified PCB boards for subsequent placement, buffering production rhythm between processes
Optimize production scheduling: Rationally schedule PCB boards into the buffer zone according to production plans and real-time information
Improve production automation level: Automatic transmission between equipment reduces manual operations and human error risks

Packing & Delivery

Item	PCB Buffer
Package	1 set into one wooden carton as safety condition
External Dimension	125016001200mm
Weight	about 170-330kgs
Delivery	about 15-20 working days
Payment	D/P, T/T, Western Union, MoneyGram
Port	Shenzhen
Shipment	A. By Courier: 4-7 Working days by special offer B. By Air: 7 Working days at appointed airport C. By Sea: 20-25 Working days at appointed port
